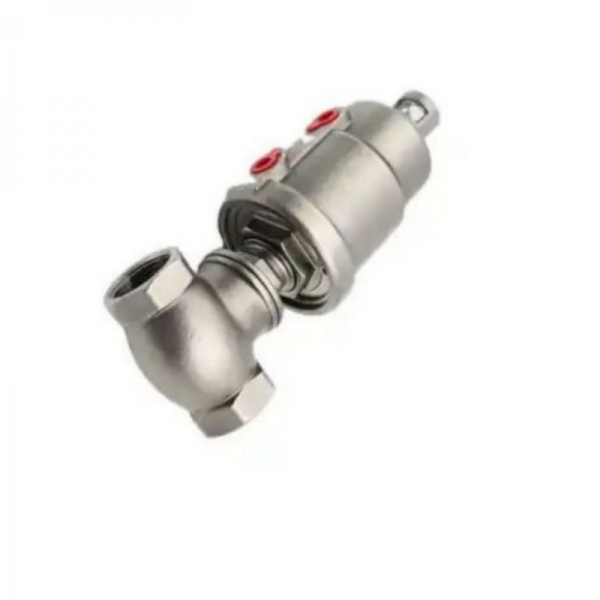

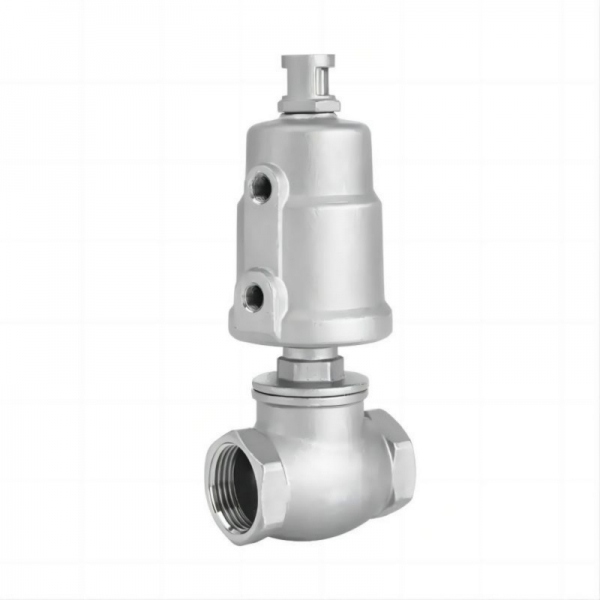

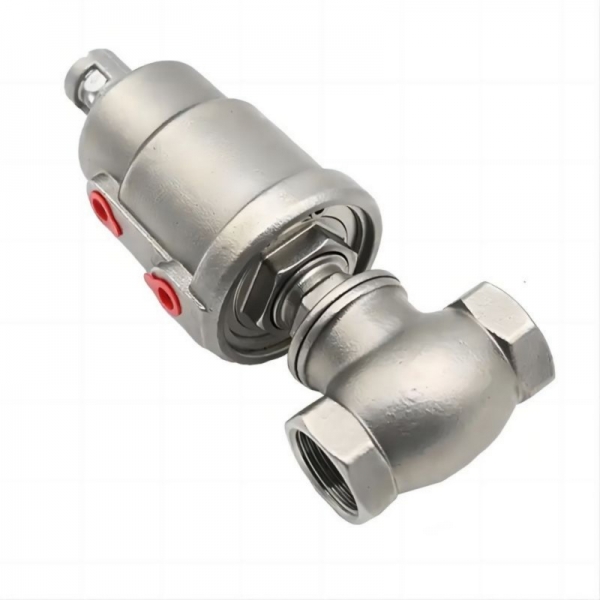

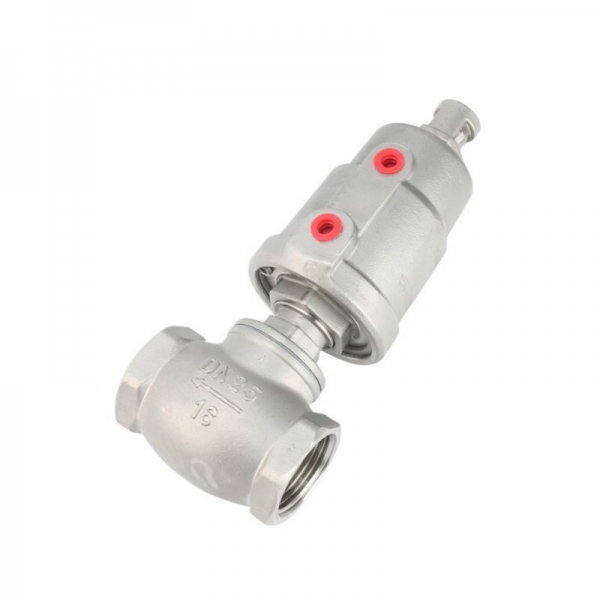

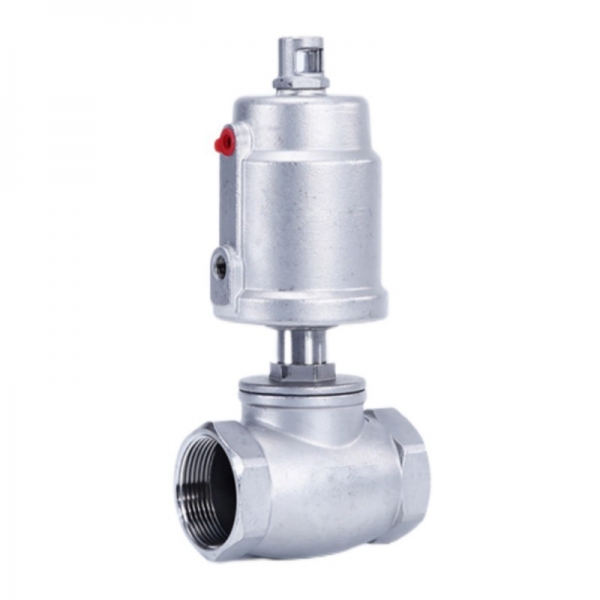

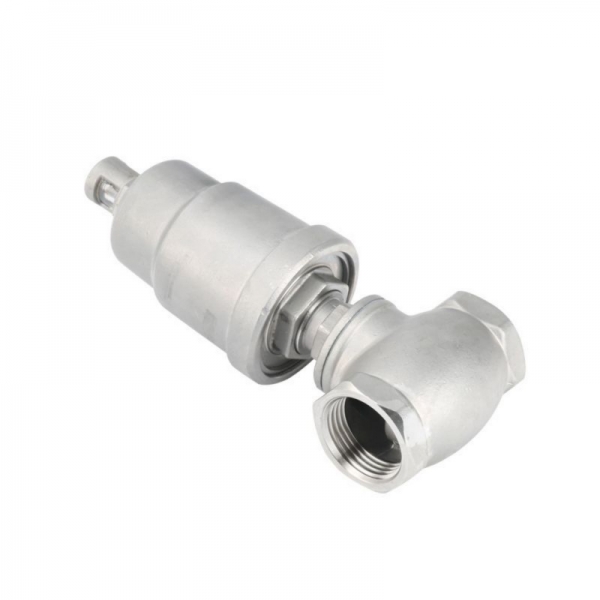

Stainless Steel Female Thread Pneumatic Angle Seat Piston Valve Screw Pneumatic Waist Drum Valve
  • Stainless Steel Female Thread Pneumatic Angle Seat Piston Valve Screw Pneumatic Waist Drum Valve
  • Stainless Steel Female Thread Pneumatic Angle Seat Piston Valve Screw Pneumatic Waist Drum Valve
  • Stainless Steel Female Thread Pneumatic Angle Seat Piston Valve Screw Pneumatic Waist Drum Valve
  • Stainless Steel Female Thread Pneumatic Angle Seat Piston Valve Screw Pneumatic Waist Drum Valve
  • Stainless Steel Female Thread Pneumatic Angle Seat Piston Valve Screw Pneumatic Waist Drum Valve
  • Stainless Steel Female Thread Pneumatic Angle Seat Piston Valve Screw Pneumatic Waist Drum Valve
Stainless Steel Female Thread Pneumatic Angle Seat Piston Valve Screw Pneumatic Waist Drum Valve

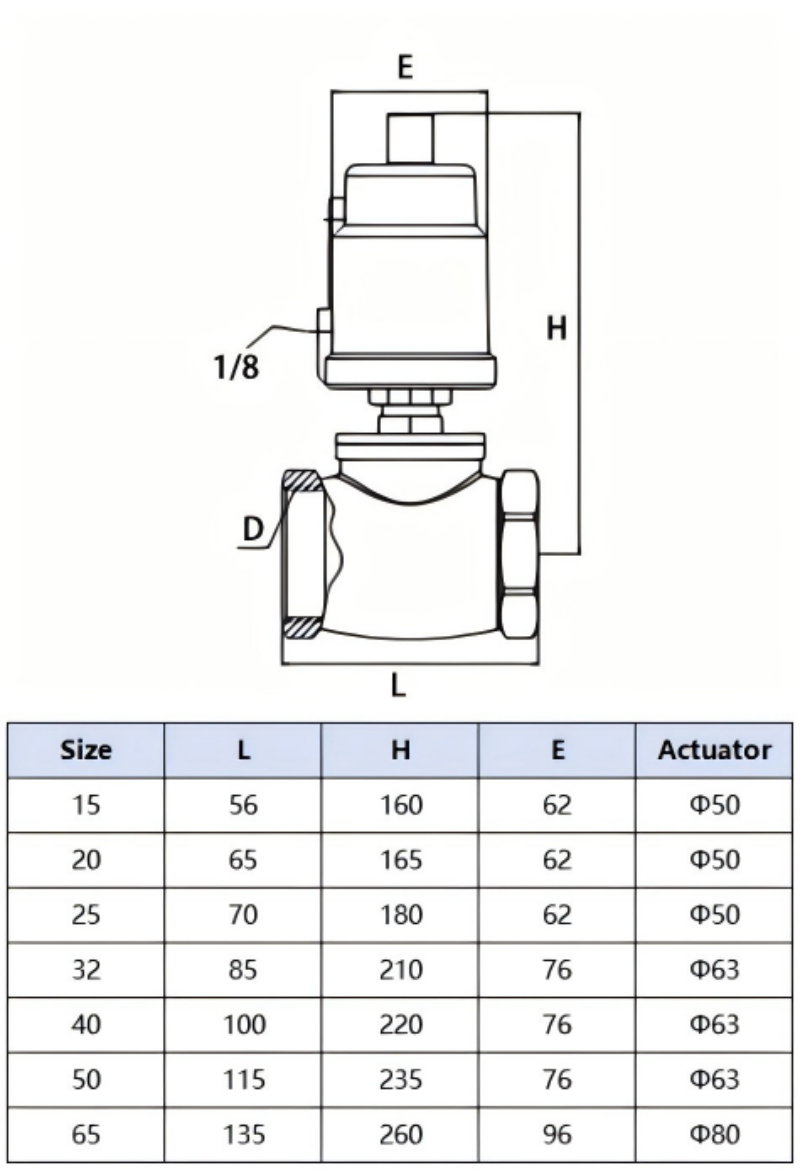

Specification:
Size :DN15--DN65
Body material: stainless steel
Pneumatic form: 304 stainless steel
Spool seal :PTFE
Stem seal :PTFE/FKM
Piston seal :FKM/NBR
Applicable media: water, neutral gas or liquid, alcohol, oil
Medium temperature :PTFE:-10℃~+180℃
Ambient temperature :-10℃ ~+60℃
Viscosity: Max. 600MM2/S
Control medium: air/neutral gas
Control pressure range :0.3-1MPA
