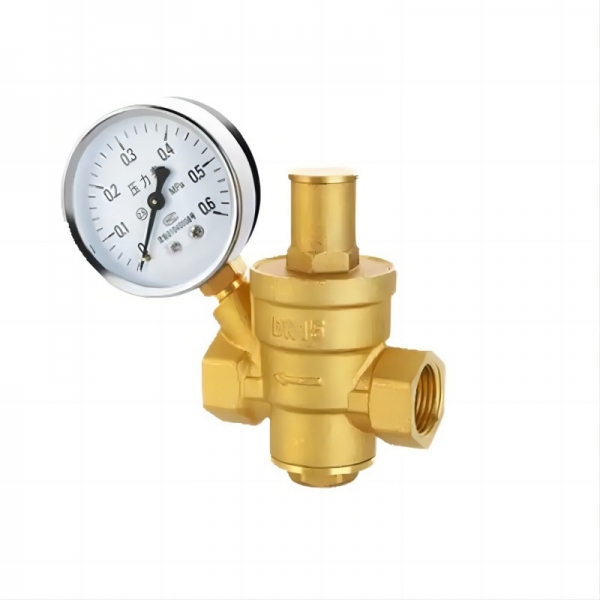

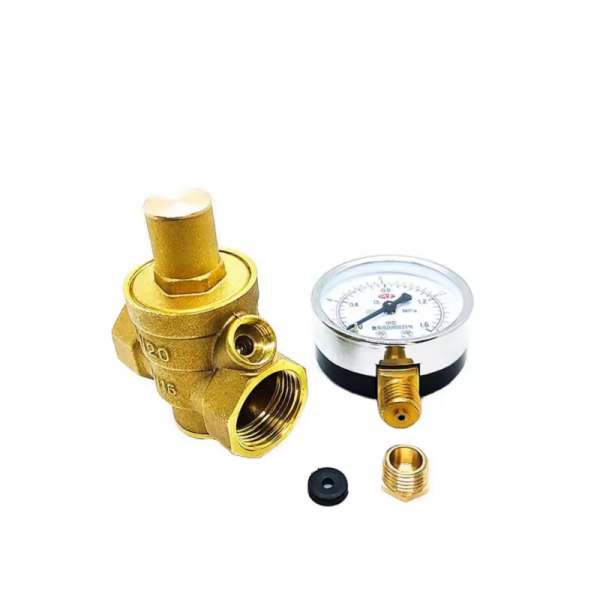

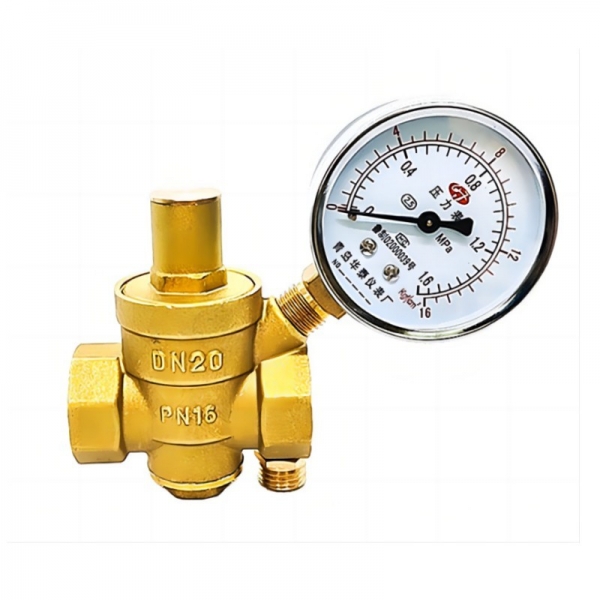

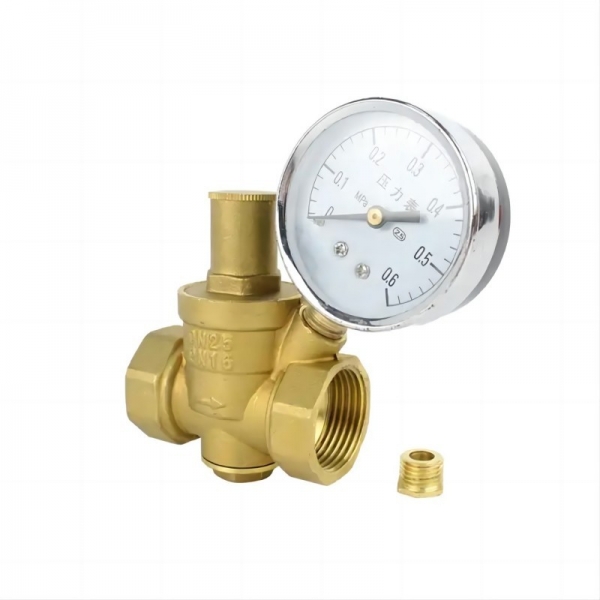

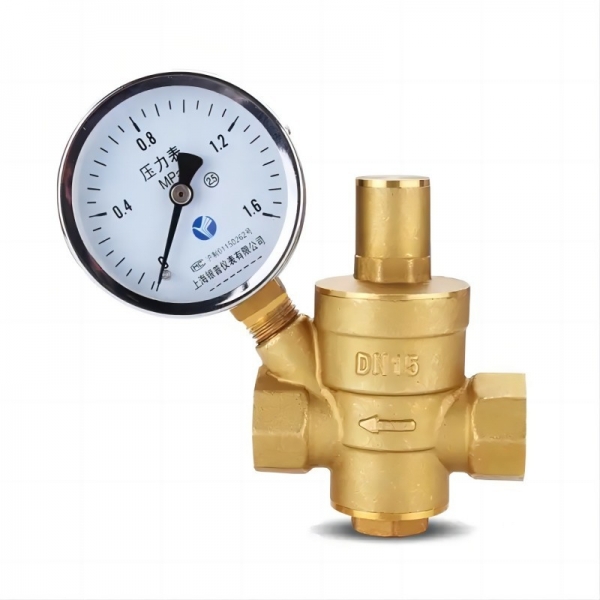

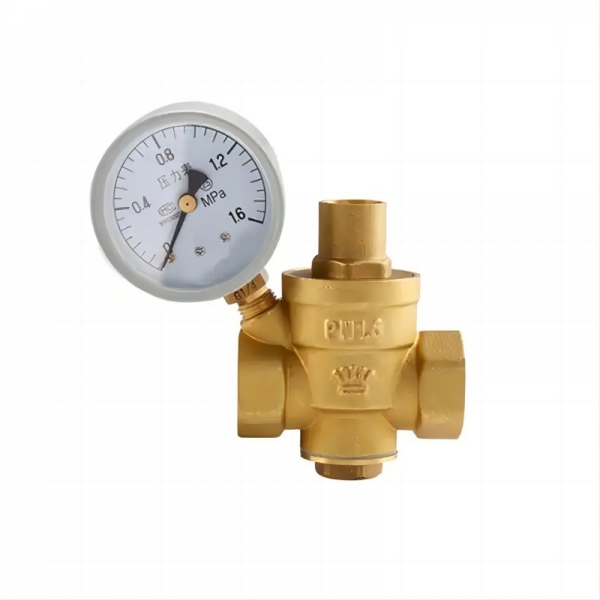

- Brass Water Pressure Reducing Maintaining Valve DN15/DN20/DN25/DN32 Regulator Adjustable Relief Valve Gauge
- Specifications:
Product Name: Brass tap water pressure reducing valve
Material: all copper
Maximum range: 16 kg/cm²Inlet pressure: 1.6Mpa (Maximum) / 232psiThread size:
DN15=G1/2"
DN20=G3/4"
DN25=G1"
DN32=G1-1/4"
DN40=G1-1/2"
DN50=G2"
Working temperature: 0°C
Applicable medium: water / gas / oil, etc
- Product description

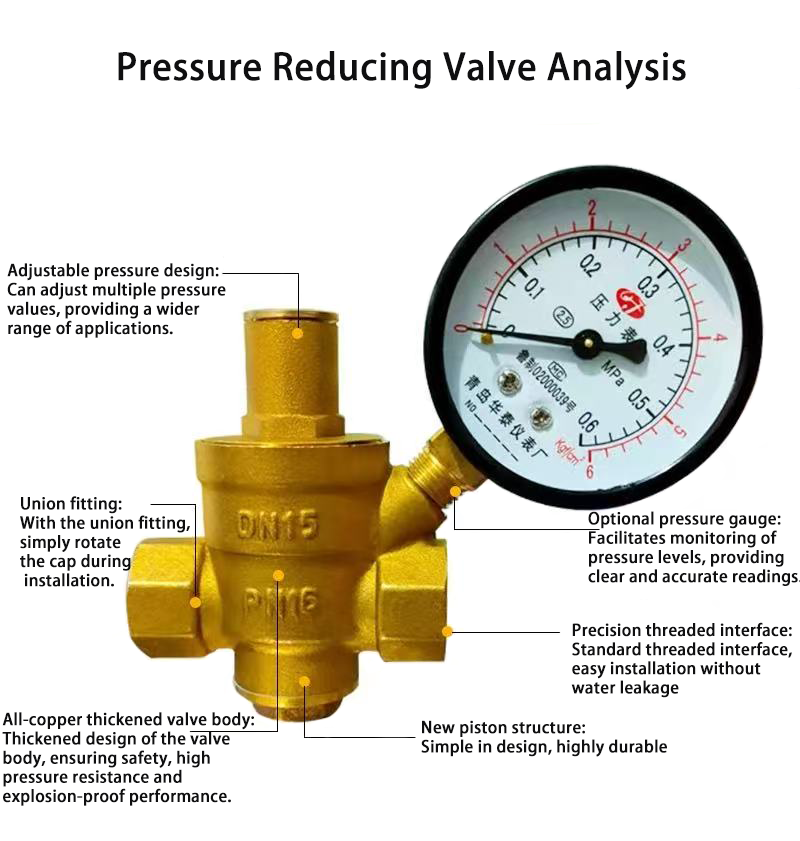

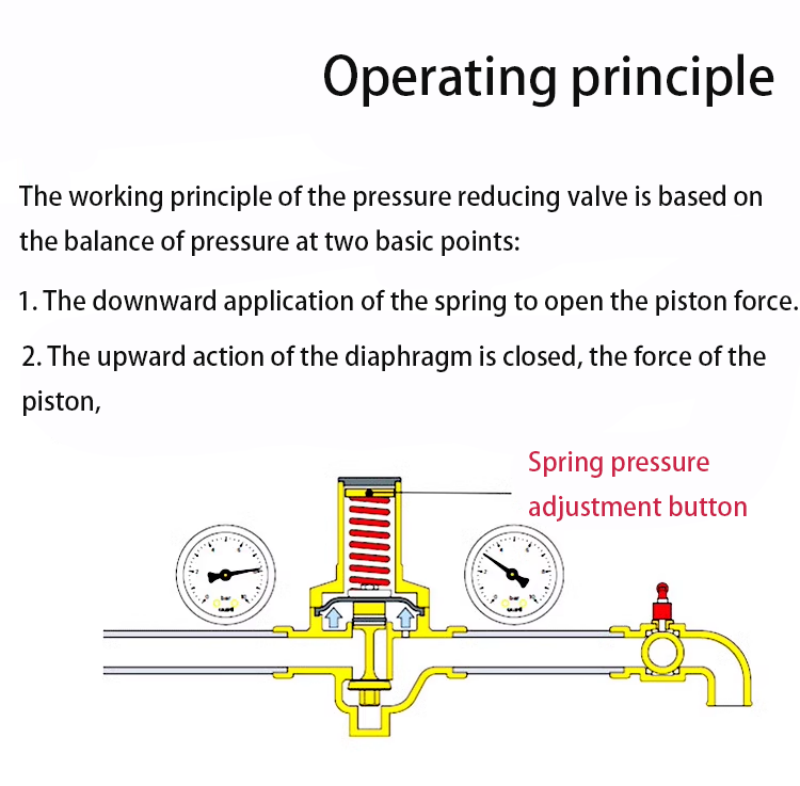

- Features:* This pressure reducer valve adopts piston structure, simple internal structure, strong environmental use, durable* No bypass pipe is required, and the distribution pipe is simple, which can save a lot of space and distribution cost* It can be installed in front of most tap water equipment* There is pressure adjustment knob in the cover, which can be adjusted free* This product can withstand pressure of 1.6MpaApply to: Hydraulic instability, water flow too fast, water purifiers, solar energy, gas heater and faucet.Valve working principle can be simply understood as the entrance pressure and outlet pressure = spring force, through the control valve closure flow inside the opening of the size to control the pressure at the outlet, the water through the opening, closure and fluid resistance is small, the pressure loss is small, the outlet pressure is greater, and vice versa outlet pressure is small.
