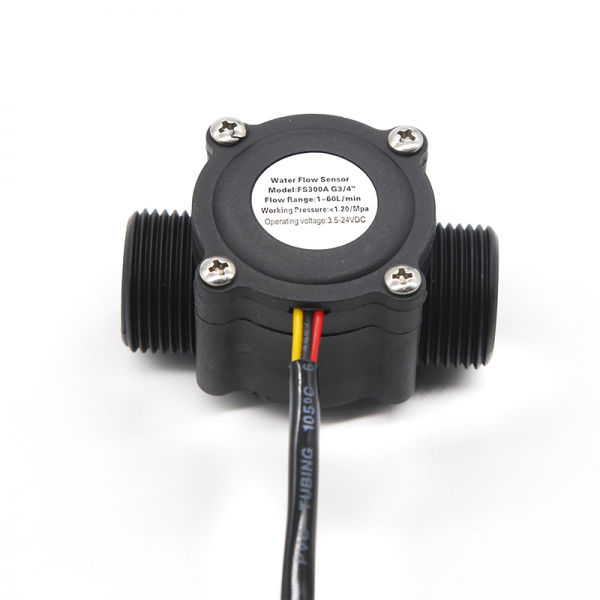

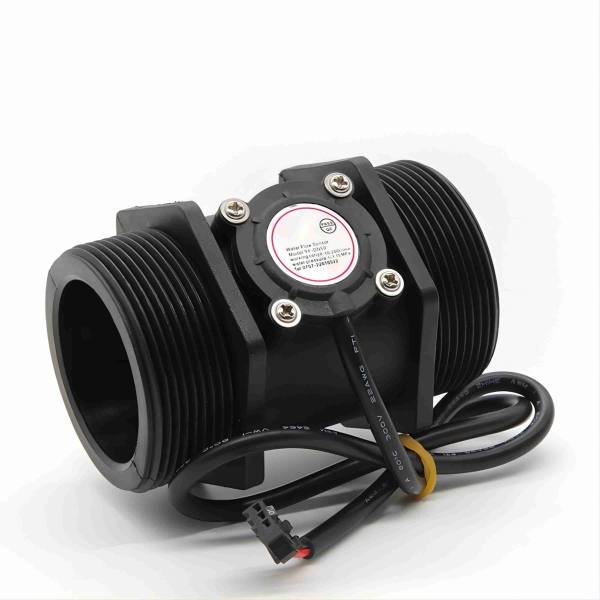

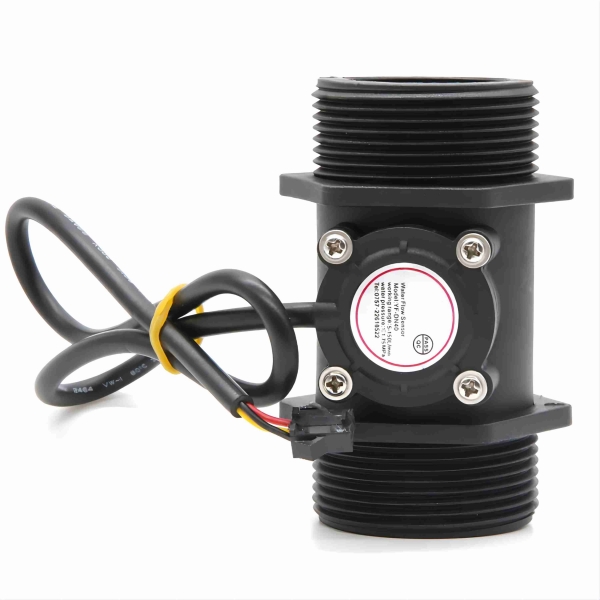

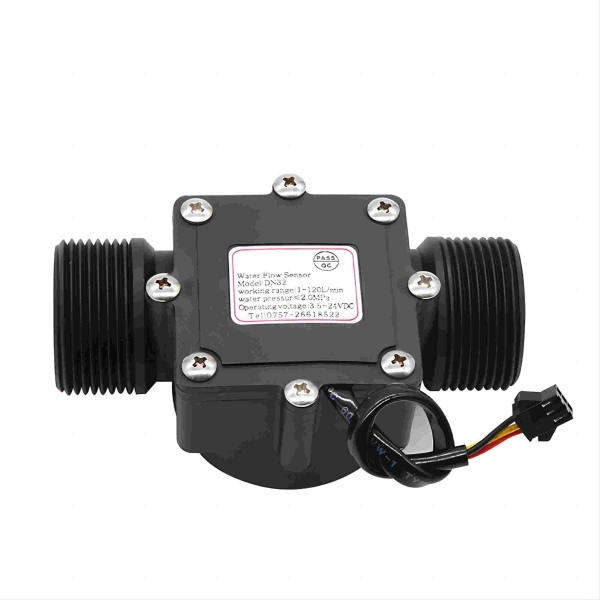

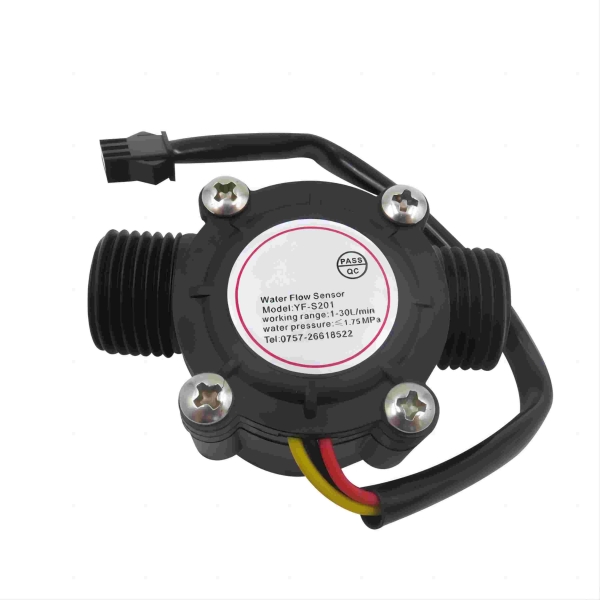

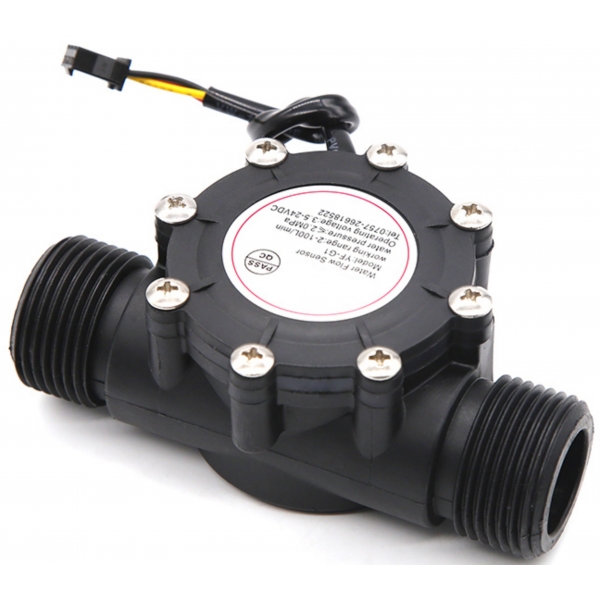

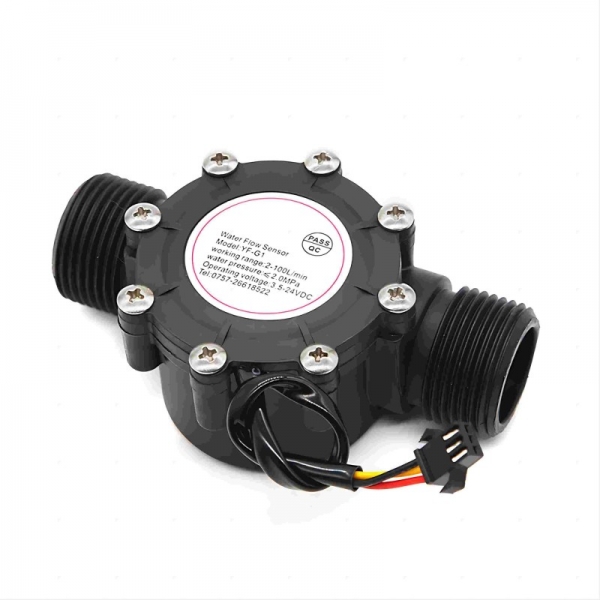

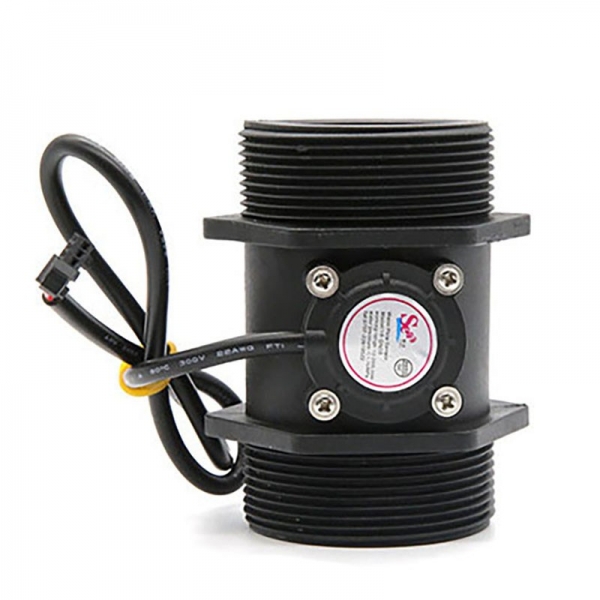

- DN15-DN50 Plastic Nylon Flowmeter Hall Effect Switch Sensor Water Counter Liquids Flow Sensor For Pool

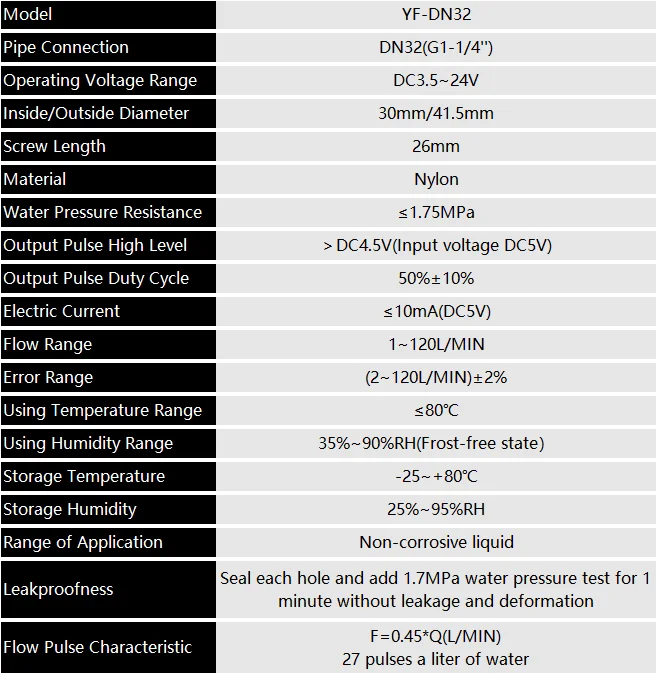

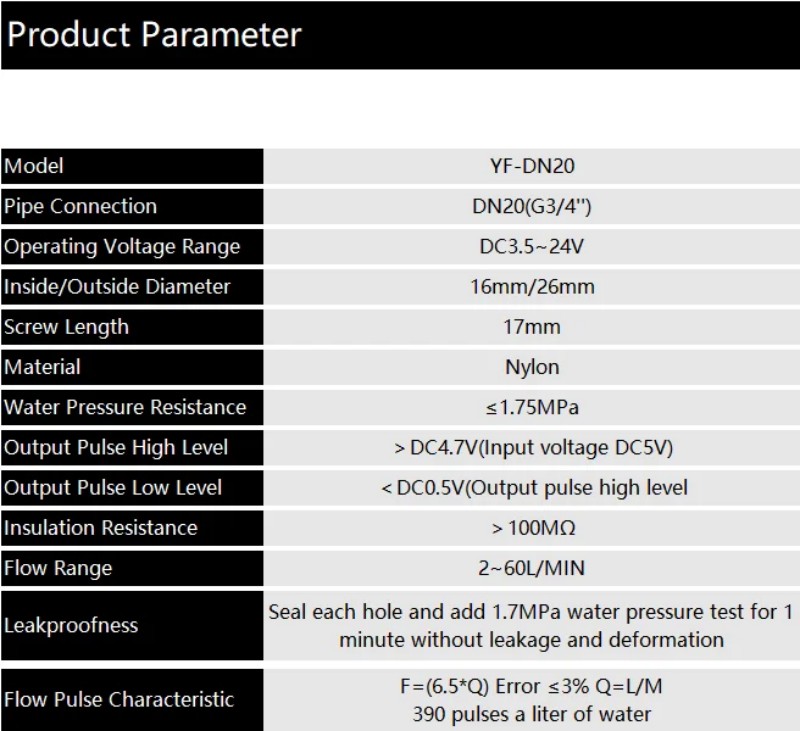

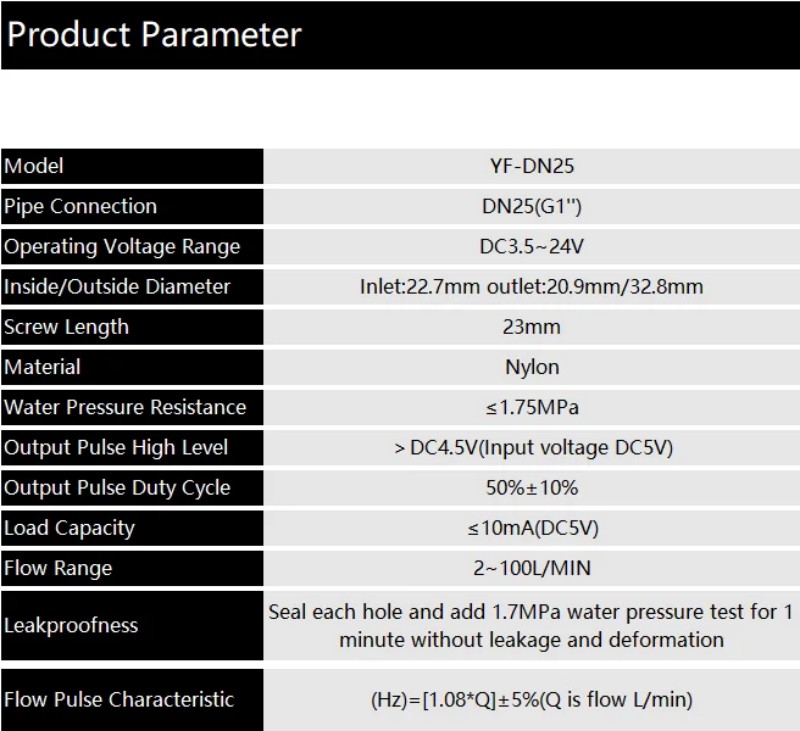

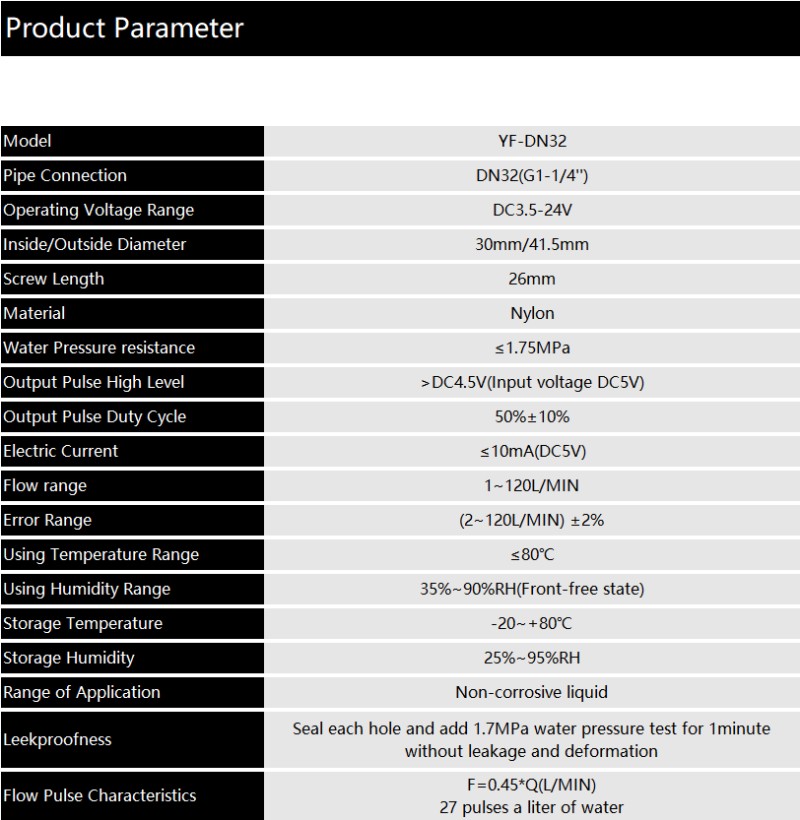

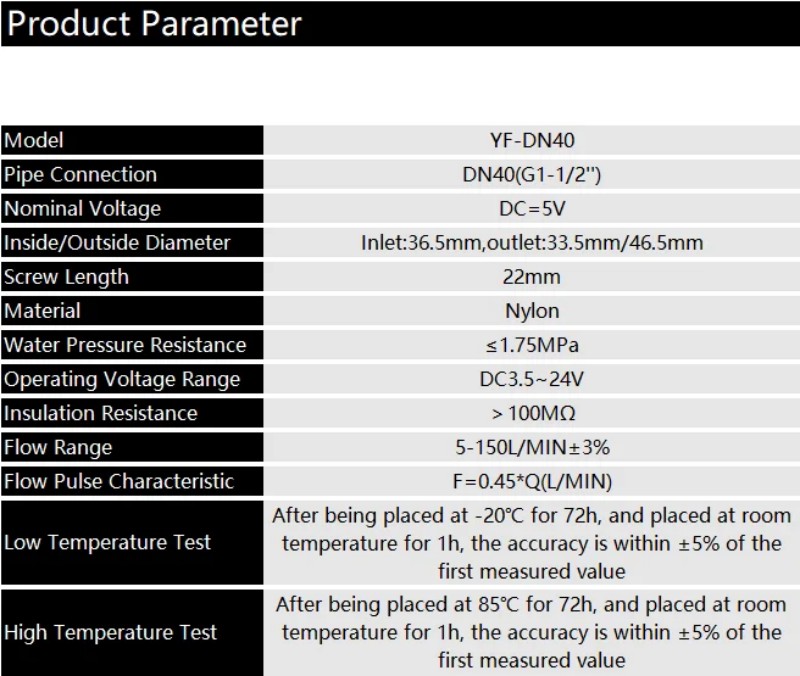

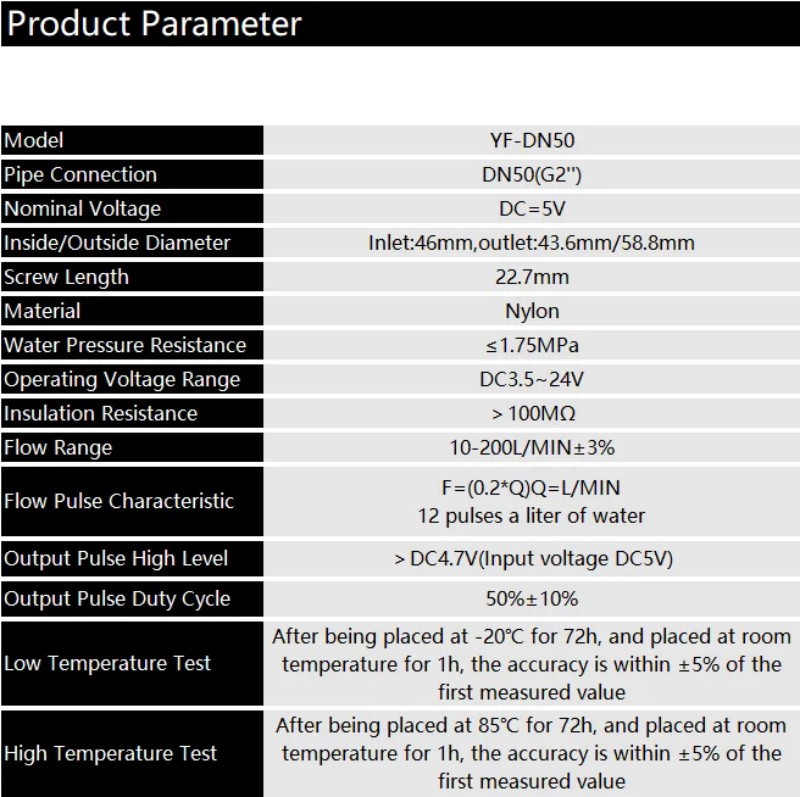

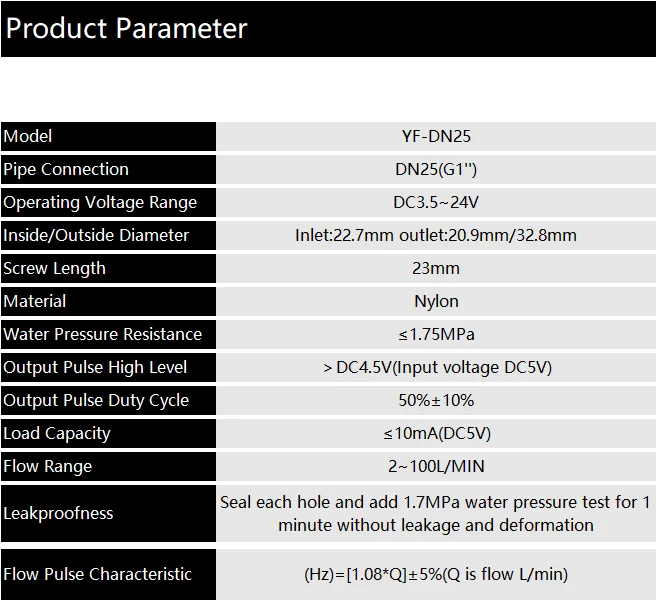

- Specification:

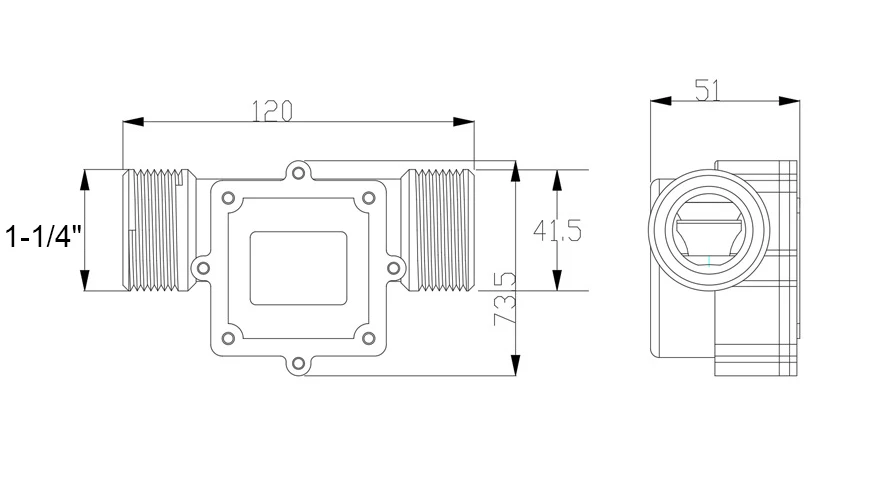

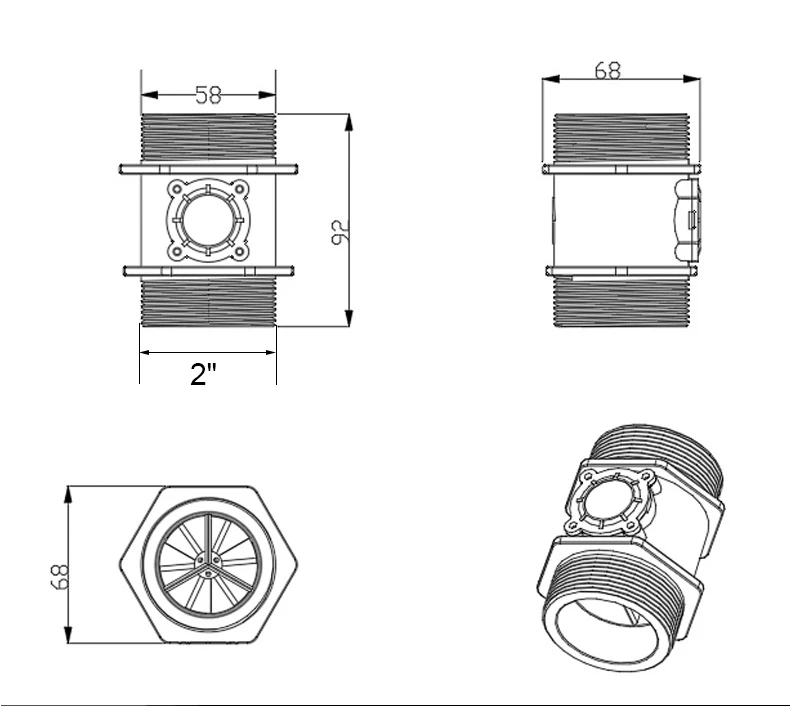

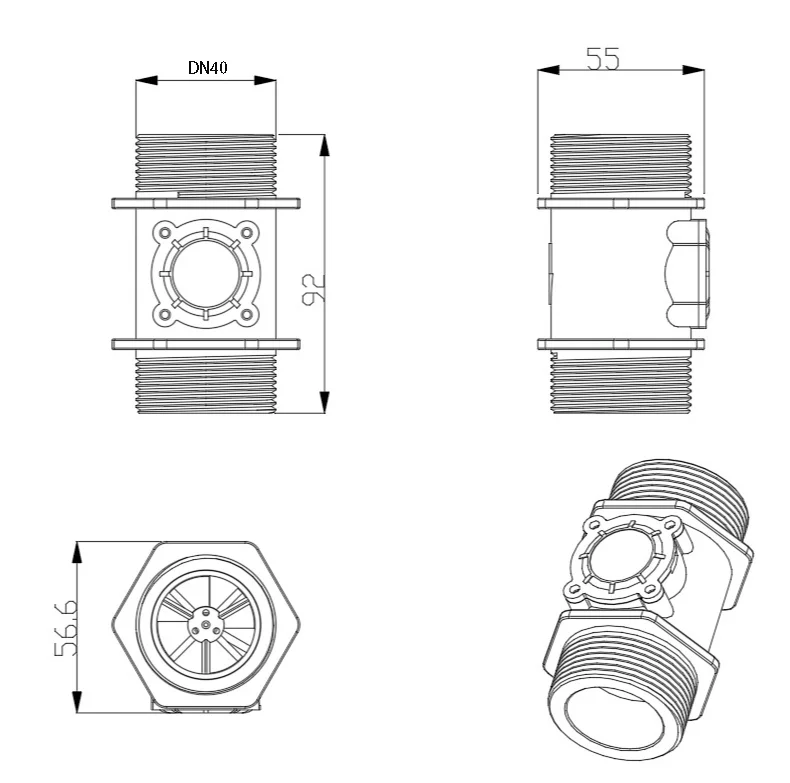

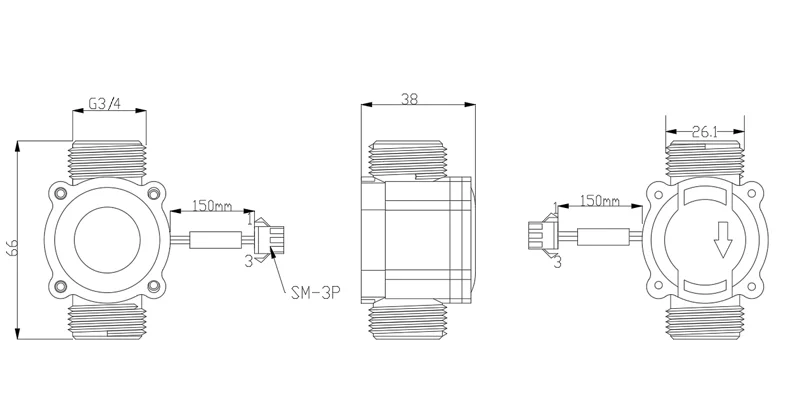

External threads: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"temperature: -25~+80Allowing pressure: pressure 1.75MpaOperating humidity range: 35%~90%RH (no frost)Load capacity: 10 mA (DC5V)Working voltage range: DC3.5~24VCurrent:≤10MAMaximum operating current: 15 mA (DC 5V)The lowest rated working voltage: DC 4.5 5V-24VFlow Ranges: 1/2" 1-30L/min, 3/4" 2-60L/min, 1" 2-100L/min,1-1/4‘‘ 1-120L/min, 1-1/2‘‘ 5-150L/min, 2‘‘ 10-200L/min
- Product description
Instructions for use:
1. In order to avoid particles and debris entering the sensor, the filter must be installed at the water inlet of the sensor;
2, the installation of the water flow sensor should be inside the equipment or indoors, do not be exposed to the outdoor or humid high temperature and other harsh environment for a long time, the installation of the water flow sensor must avoid the vibration and shaking environment and application, so as not to affect the measurement accuracy of the sensor;
3, when the magnetic material or the material that generates magnetic force on the sensor is close to the sensor, its characteristics may change;
4, do not disassemble the water flow sensor without authorization to prevent damage, any water flow sensor without authorization is not included in the scope of warranty;
