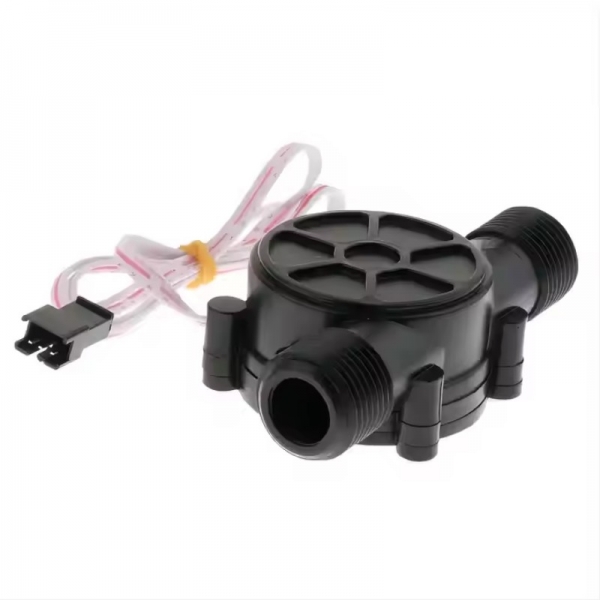

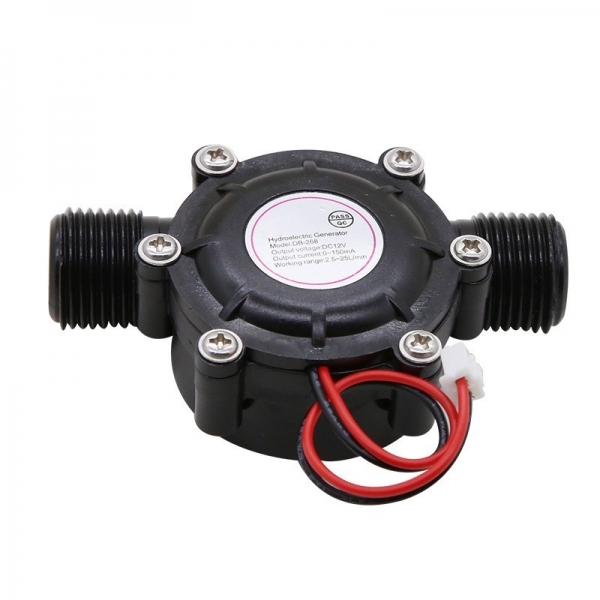

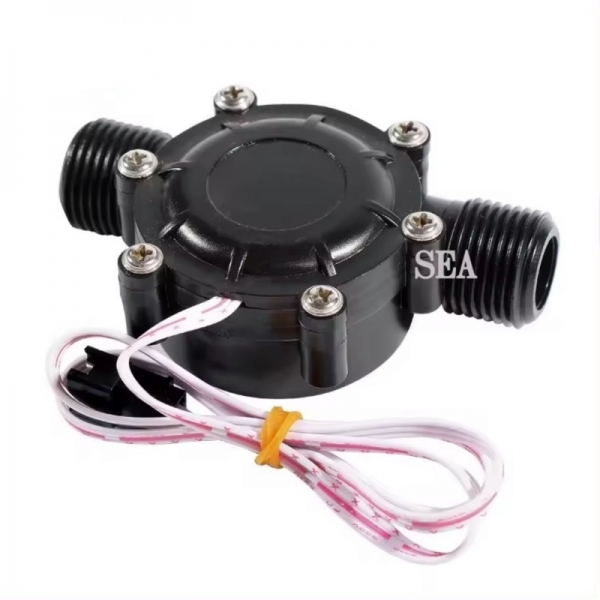

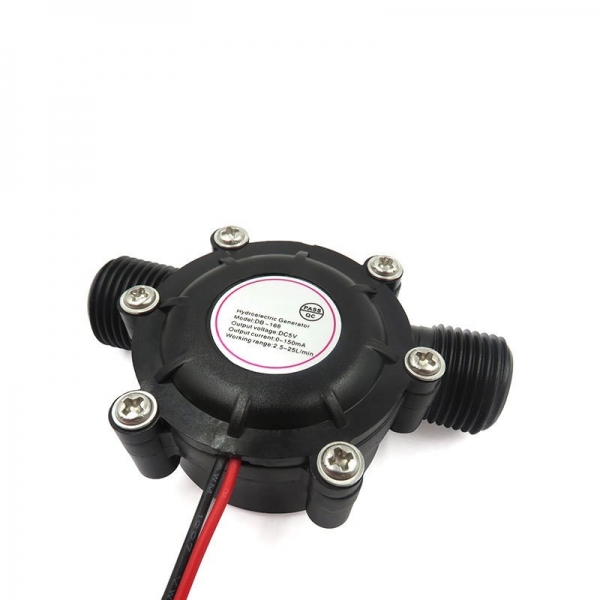

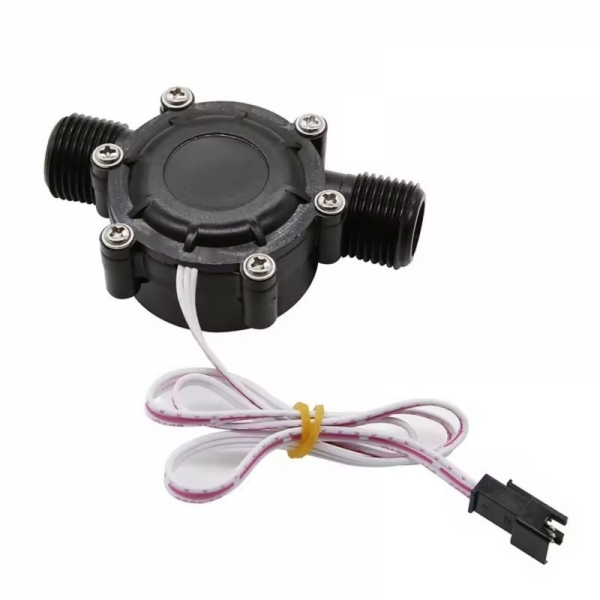

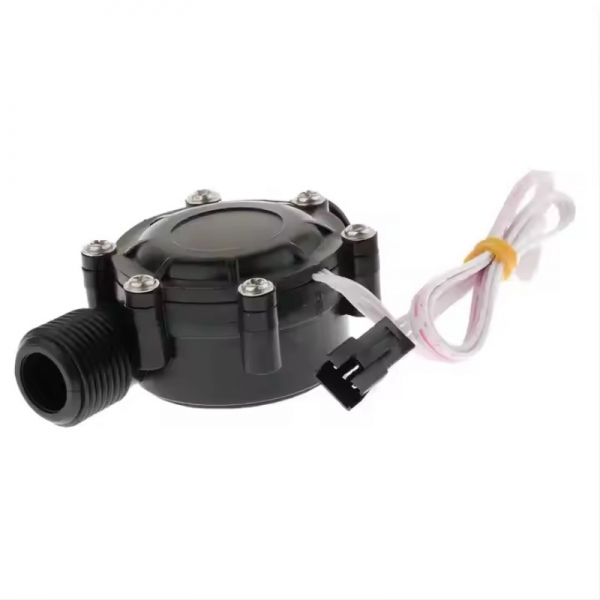

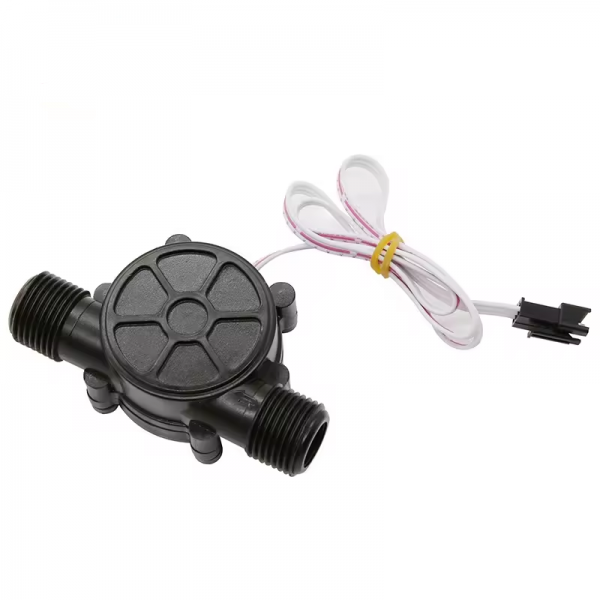

G1/2‘‘ Three-phase AC0-20V Output Hydroelectricity Generator Shower Bathroom Faucet Generator Hydro Power: Specification:
Model No.: Three Phase DB-168 AC20V Output

Pipe Connection: G1/2

Max Water Pressure: 1.2MPA

Working Pressure : 0 ~ 1.0MPA

Testing Pressure: 0.6MPA

Temperature Range: 0 ~ 80°C

Maximum Allowable Ambient Temperature: 100°C (30 minutes)

Storage Temperature : -25~65 °C

Flow Range: 3.5 - 20L/min (water pressure 0.05-0.2MPA )

Max Output Voltage: DC20V +/-0.3V ( water flow range 10L/min )

Output Voltage: DC10V +/-0.3V ( water flow range 4L/min )

Starting Flow Of Output Voltage: DC2.5V +/-0.25V ( water flow range 3.5L/min )

Generator Life: 1000 hours

Application: Water Heater ; LED Shower ; Induction Faucet...

Product description: 3 Different Power Outputs of this generator mold, which devided into 3 sub-type as follows:

AC0-20V: AC Output. This generator without voltage regulator, max current 150mA. Because the power generated during charging It is used in time, so the voltage will be automatically maintained at around 14V, and the most suitable voltage will be maintained so that all the electricity generated will be used for charging the small battery.

DC5V: DC5V stabilized voltage output, which can charge the mobile phone or the lithium battery with the charge management chip.

DC12V: DC12V stabilized voltage output, which can power and charge the 12V radio and power the LED lamp.
