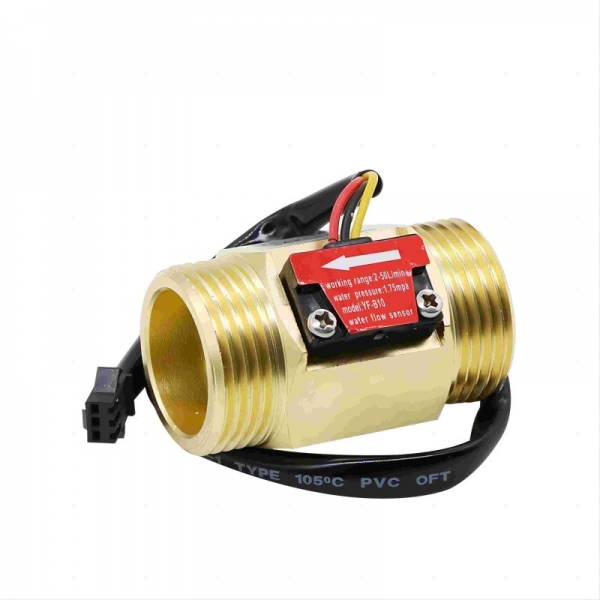

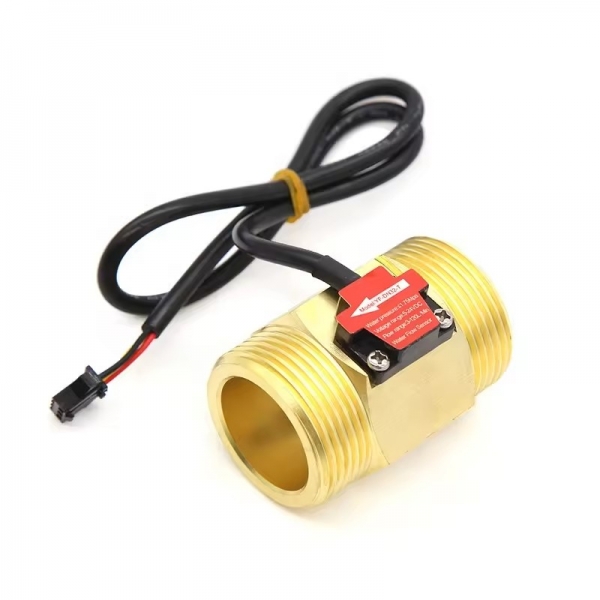

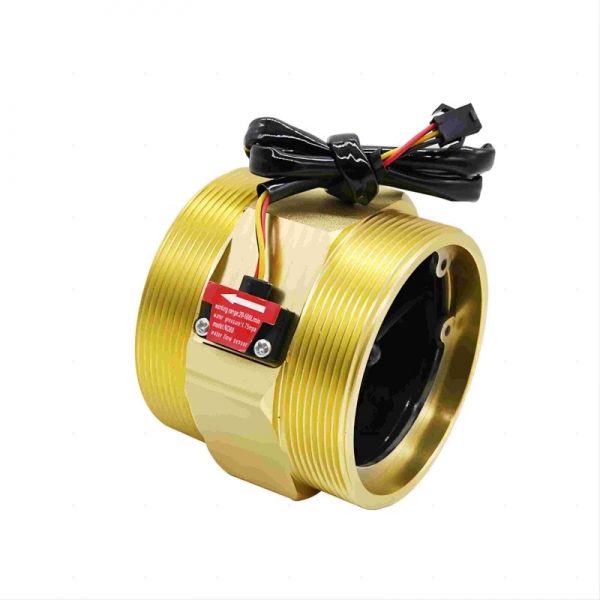

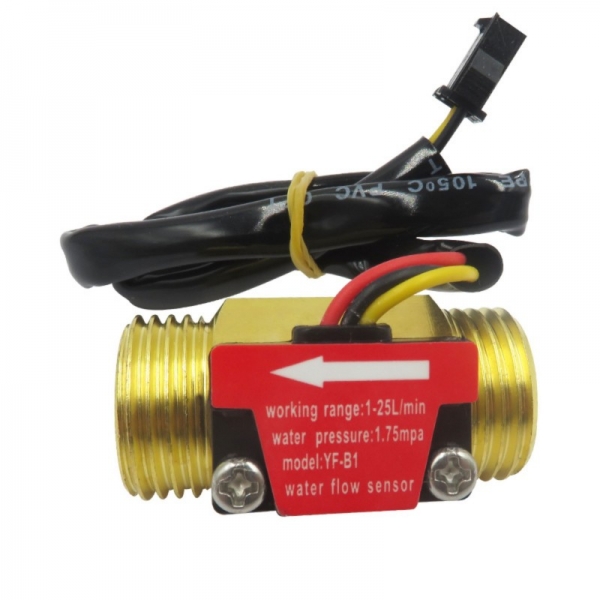

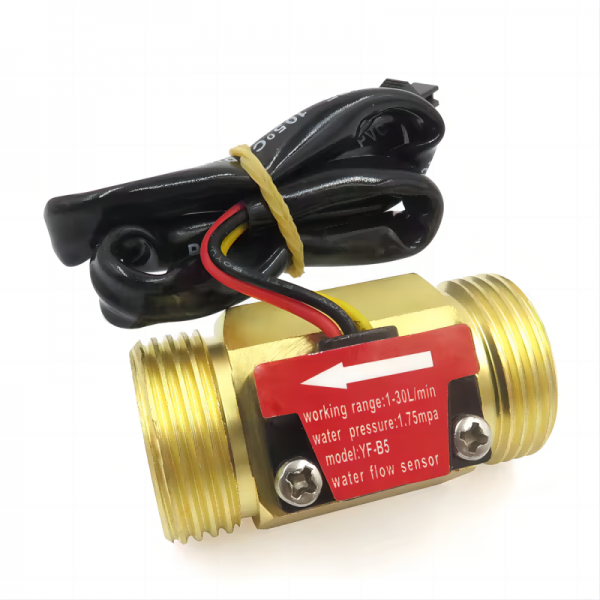

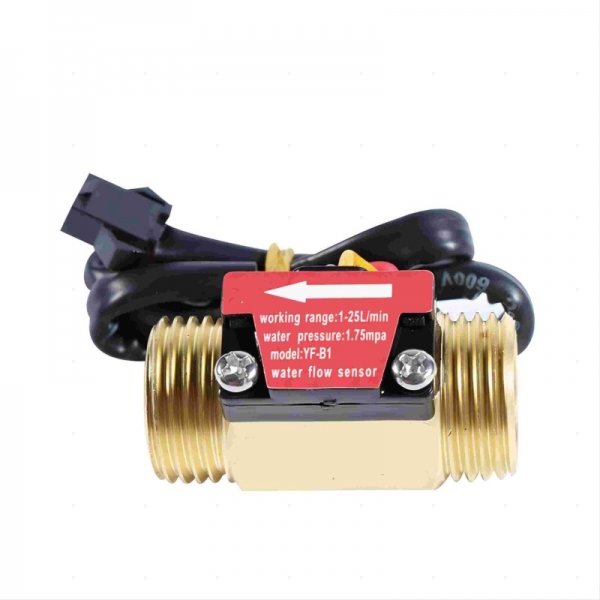

- Brass Water Flow Sensor Flowmeter Hall Flow Sensor Water Control Liquid Sensor Switch

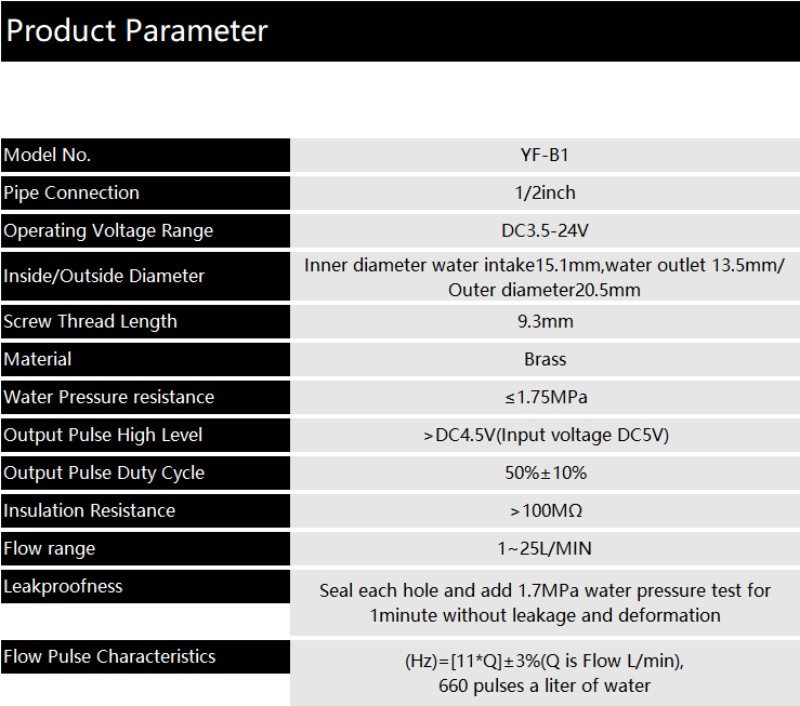

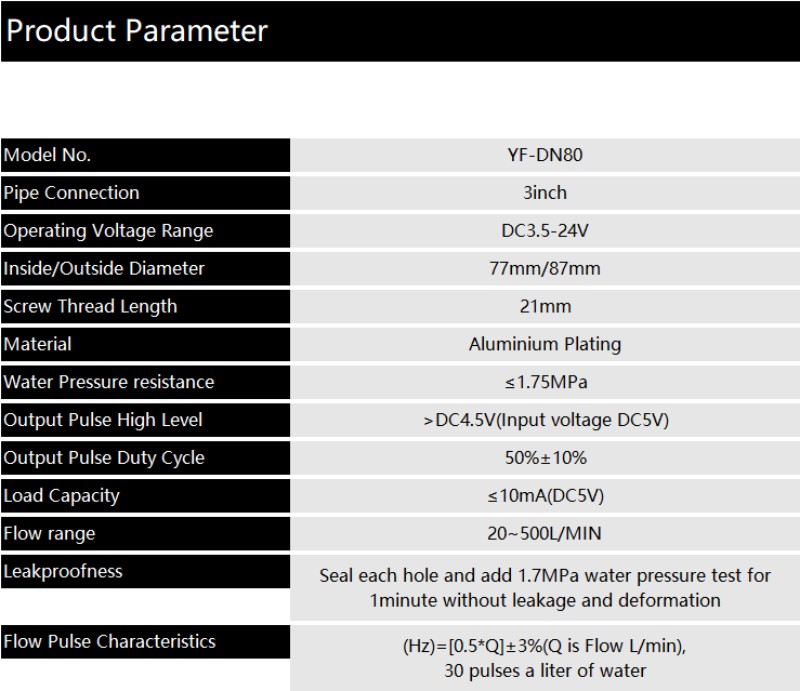

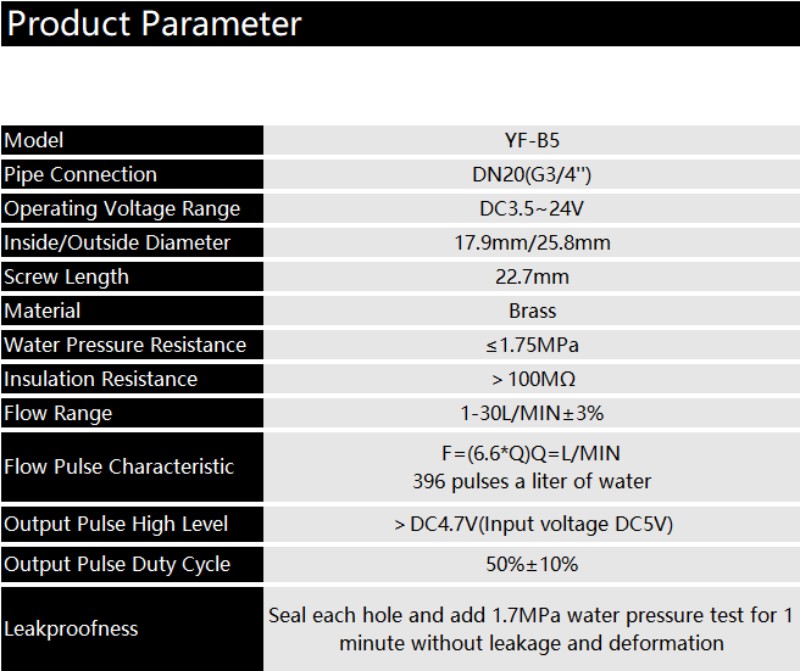

- Specifition:External threads: 1/2", 3/4", 1", 3"temperature: -25~+80Allowing pressure: pressure 1.75MpaOperating humidity range: 35%~90%RH (no frost)Load capacity: 10 mA (DC5V)Working voltage range: DC5~18VMaximum operating current: 15 mA (DC 5V)The lowest rated working voltage: DC 4.5 5V-24VFlow Ranges: 1/2" 0.5-25L/min, 3/4" 1-30L/min, 1" 2-50L/min,
- Product description
1. In order to prevent particles and debris entering into the sensor, a filter must be installed at the water inlet of the sensor.
2. The water flow sensor is suitable for installation indoors or inside the equipment, and it must not be exposed to harsh environments such as outdoors or humidity and high temperature for a long time. The installation of the water flow sensor must avoid the environment and application of vibration and shaking, so as not to affect the measurement accuracy.
3. When magnetic material is placed close to the sensor, its characteristics may change.
